High frequency

Q'ty :

Add To Inquiry

TrHigh frequency



Application

Heat treatment
Hot forging, Heat forming
Welder
Smelting and others

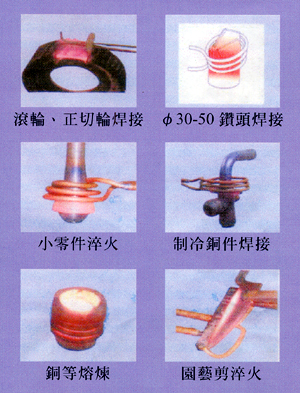

Applied scope

*The welding of diamond tools and rigid alloy cutting tools
*The high frequency welding machine of every kind of metal steel-steel, steel-
copper, copper-copper and so do the same kinds or the different kinds of metal.
*The heat treatment for the metal materials, such as quenching, annealing, normalizing, tempering and so on.
*Metal heat forging and heat molding.
*Powder metallurgy sintering and metal smelting.
*Any other scene that metal heating is needed.

Main Features

*Unique semiconductor solid-state and high frequency converter controlling technique
*Whole power output containing the function of time controlling and various models of separated bodies that can fit your needs in every way.
*Especially light for only 12-60kg.
*Simple operation that can be learned in minutes.
*Especially safe; none of equipment needs nearly ten thousand of voltage, as avoids danger of high voltage.
*High sufficiency in saving energy; it can save up to 2/3 of energy than regular high frequency vacuum tubes.
*Simple installation; it can be done in minutes by simply connecting the power source and water.
*It can be used continually 24 hrs a day
*Auto-control type, capable of regulating heating, power and time of the process of heat retention, as benefits to raise the heat quality and important duplication of heating, and also simplify operation.

Specification

The maximum output power(KW)

The maximum oscillating power(KVA)

Output oscillating frequency(KHZ)

Output oscillating current(A)

Input voltage(V)

Auto control Time scope

Weight KG

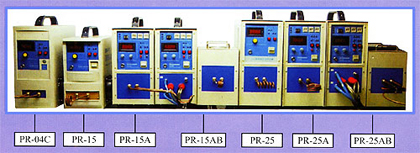

4KW

PR-04C

Regular type



4KVA

100-250

100-400

Single phase220V



12

PR-04AC

Auto-control type

0.1-9.9 three sections

15KW

PR-15

Regular type



15KVA

30-100

200-600

Single phase200V



18

PR-15A

Auto-control type

three sections

20

PR-15B

Separated-body type



25

PR-15AB

Auto-control & separated body type

three sections

25KW

PR-25

Regular type



25KVA

30-80

200-600

Three phase380V



26

PR-25A

Auto-control type

three sections

PR-25B

Separated-body type



31

PR-25AB

Auto-control & separated body type

three sections

25KW

PR-25BD

Enhanced and separated body type

25KW

30KVA

30-80





40

PR-25ABC

Auto-control & enhanced and separated body type

Three sections

30KW

PR-30B

Separated-body type

30KW

37KVA

20-80



Three phase380V



60

PR-30AB

Auto-control & separated body type

Three sections

40KW

PR-40B

Separated-body type

40KW

50KVA

20-80





70

PR-40AB

Auto-control & separated body type

Three sections
